Nature Nest
A quality automatic nest system built to high specifications and standards, for comfort and animal welfare in breeders and layers.
Specifications
Waterproof, Durable Construction
Made from special film-coated side divisions, waterproof and durable, with a galvanized steel frame.
Fully Adjustable Legs
Galvanized, fully adjustable leg supports accommodate variable floor levels via a stainless steel screw.
Built for Hot & Cold Climates
Strong, sustainable construction suits hot and cold climates and is easy to install and maintain.
Easy to Clean & Disinfect
Easy access for high-pressure cleaning, sanitizing, and disinfection minimizes red mite risk.
Easy Inspection
The automatic nest floor opens for easy inspection; the wire grid frame removes and replaces easily.
Full Roof & Structure Access
The roof lid / cover and open Nature Nest structure allow for optimal control and maintenance.
Design Features
Sheltered, Airy Volume
A sheltered, spacious nest volume with a perforated bottom for airflow gives the birds a natural feeling.
Injury-Free Entrance
Hanging plastic flaps at the entrance avoid leg and breast injuries and create a sheltered effect.
Self-Cleaning AstroTurf® Pads
Perforated AstroTurf® pads self-clean, letting dust and droppings fall through for a cleaner nest.
Tilting-Floor Expulsion System
A tilting-floor system closes the nests at night to keep hens out and pads clean, reopening before lights-on.
Gentle, Time-Clock Operation
The gentle, bird-friendly expulsion system operates on a time clock.
Egg Shield at Rollout
A plastic flap egg shield spans the rollout, reducing egg pecking.
Dust-Protected Egg Belt
The egg belt cover protects the eggs from dust.
Variable Speed Belt Controls
Variable speed controls cover all egg collection belts, with reverse and emergency stop.
Flexible Belt Configuration
Available as two separate 250mm perforated egg collection belts, or one 500mm belt.
Smooth Belt Transition
A smooth transition from the egg belt to the conveyor or collecting table avoids cracks and clears debris.
Configuration Options

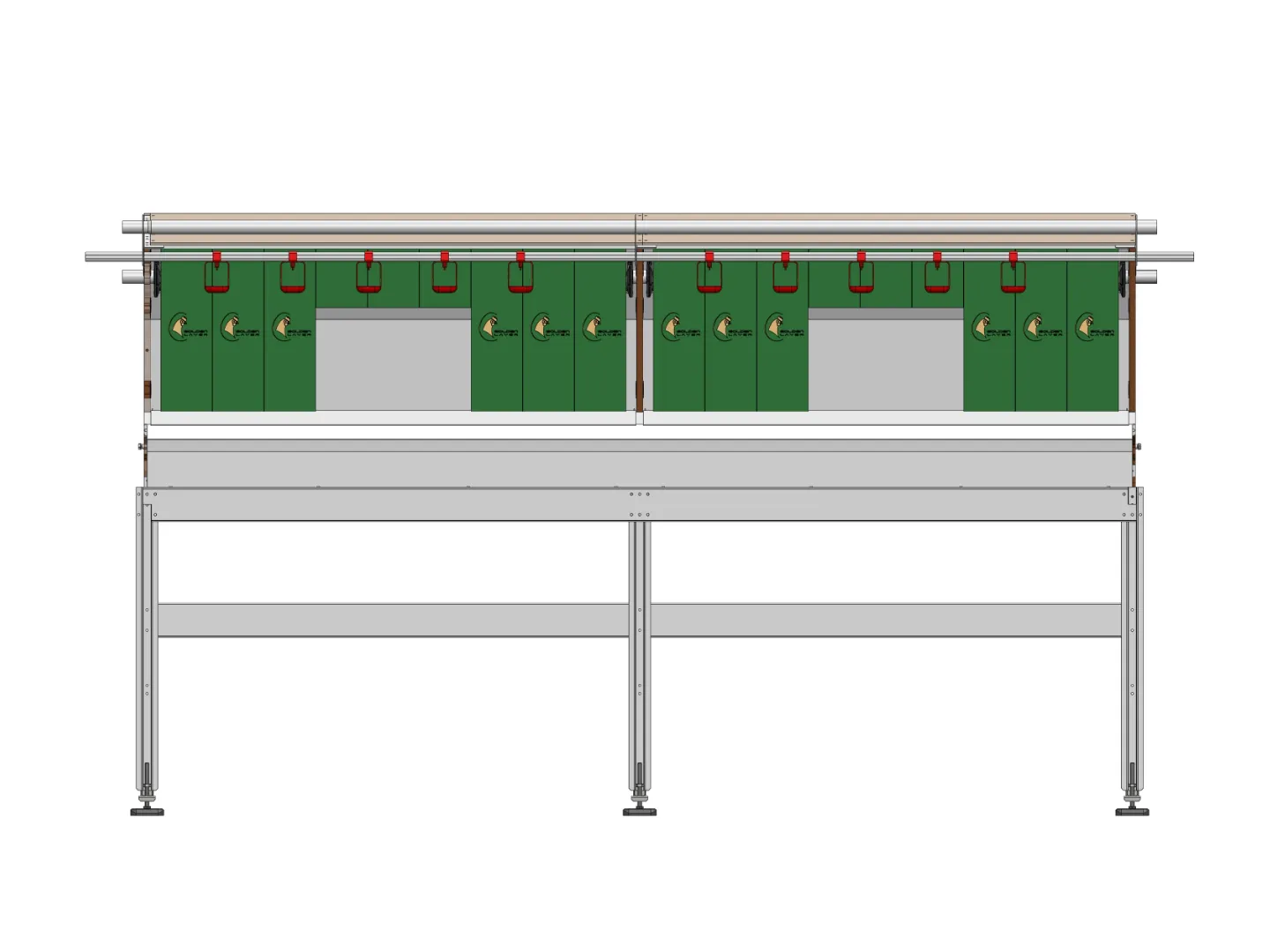

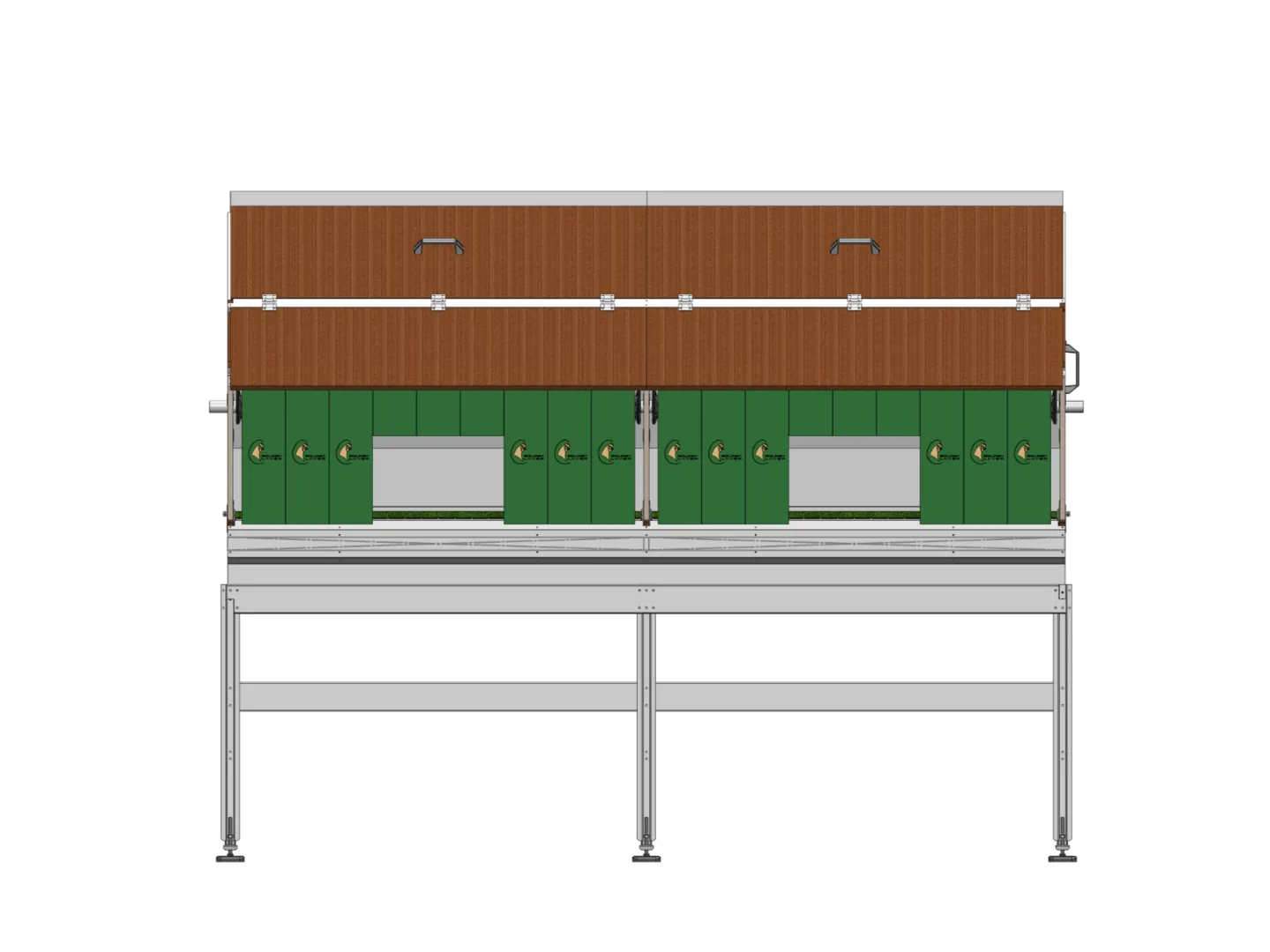

Single Tier, Front Roll-Away
Egg belts run to the outside in front of the nest.
Single Tier, Rear Roll-Away
Egg belts run in the centre, between two nests.

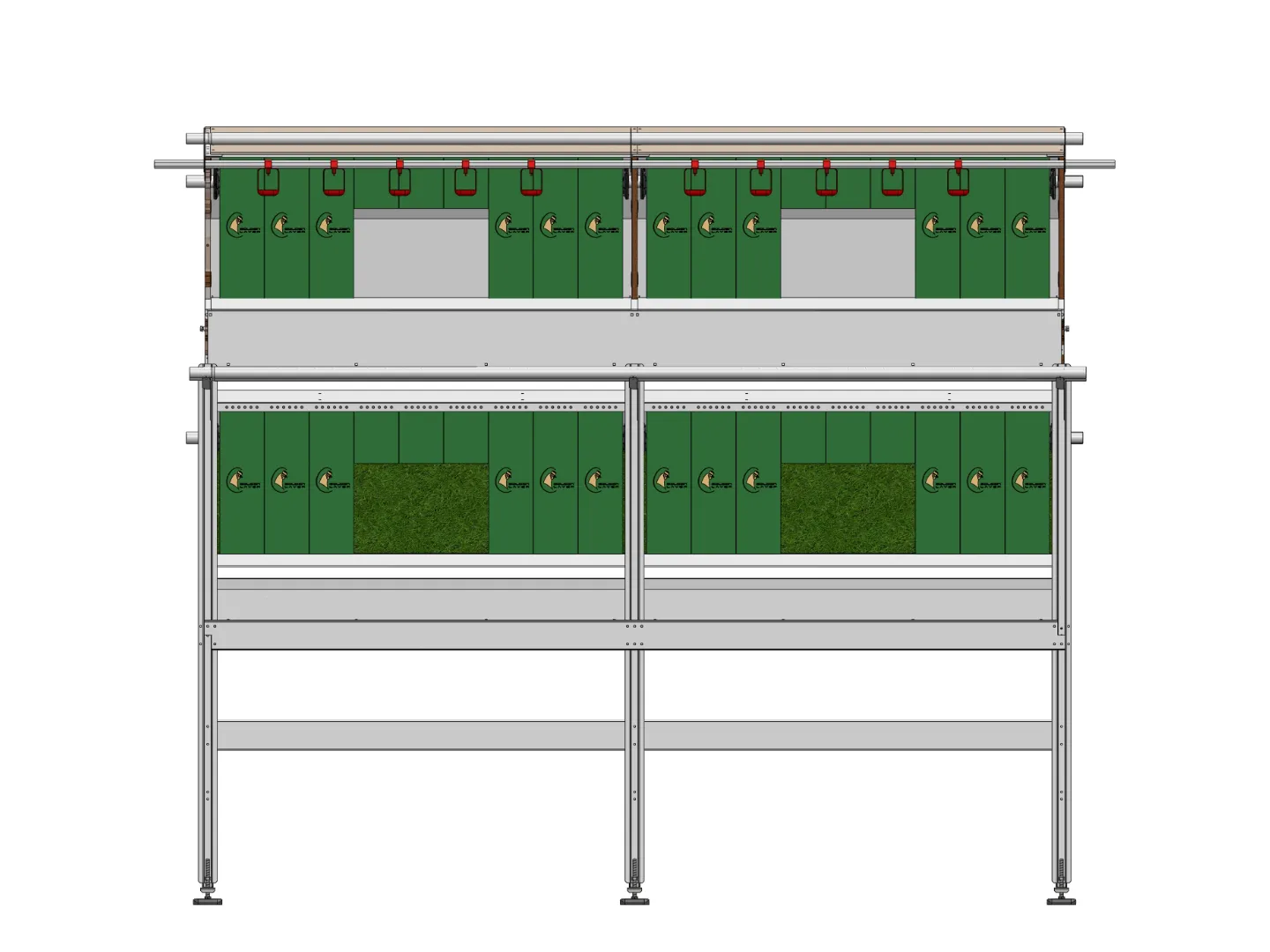

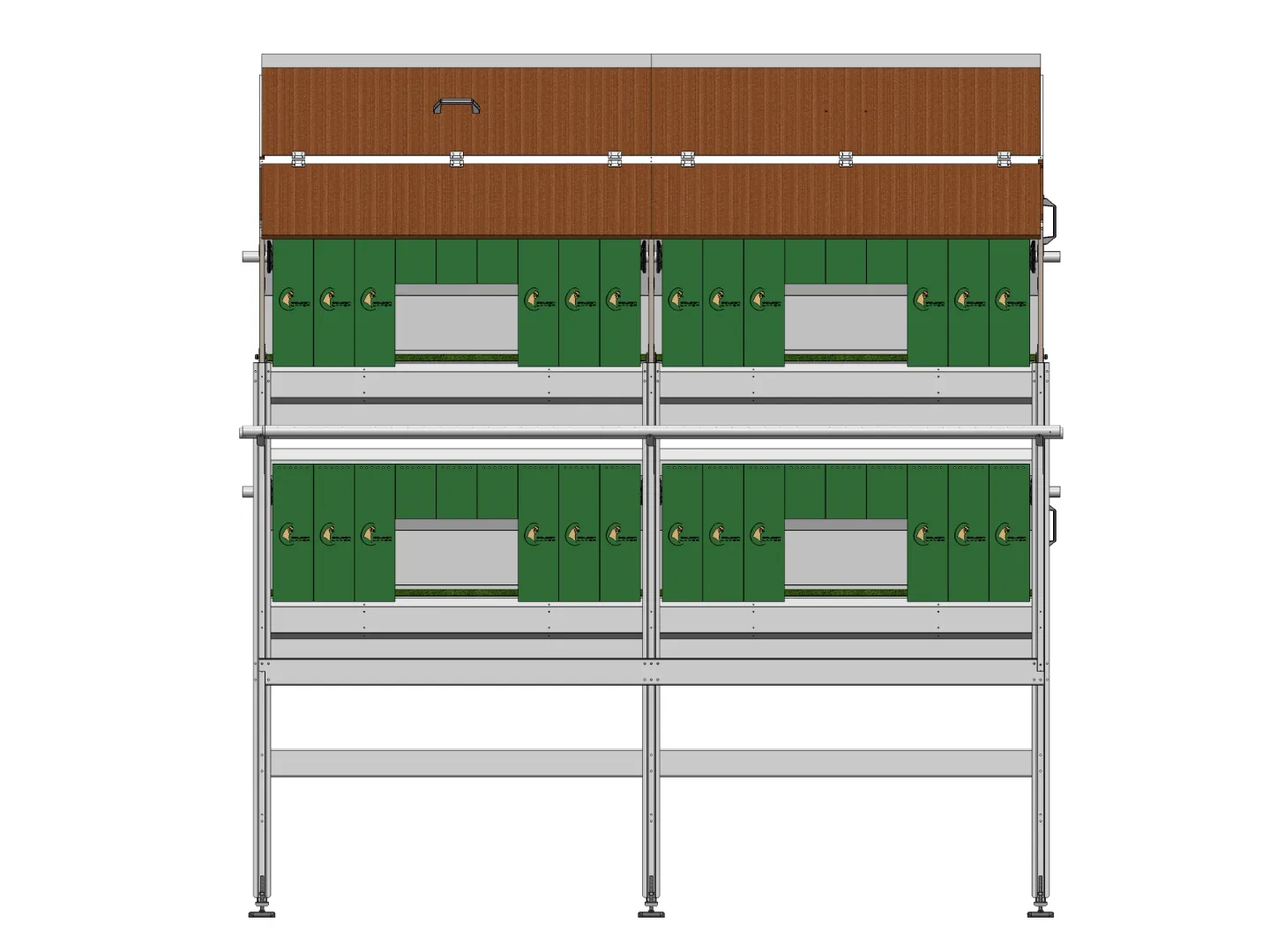

Double Tier, Front Roll-Away
Egg belts run to the outside of the nest.
Double Tier, Rear Roll-Away
Egg belts run in the centre of the nest.

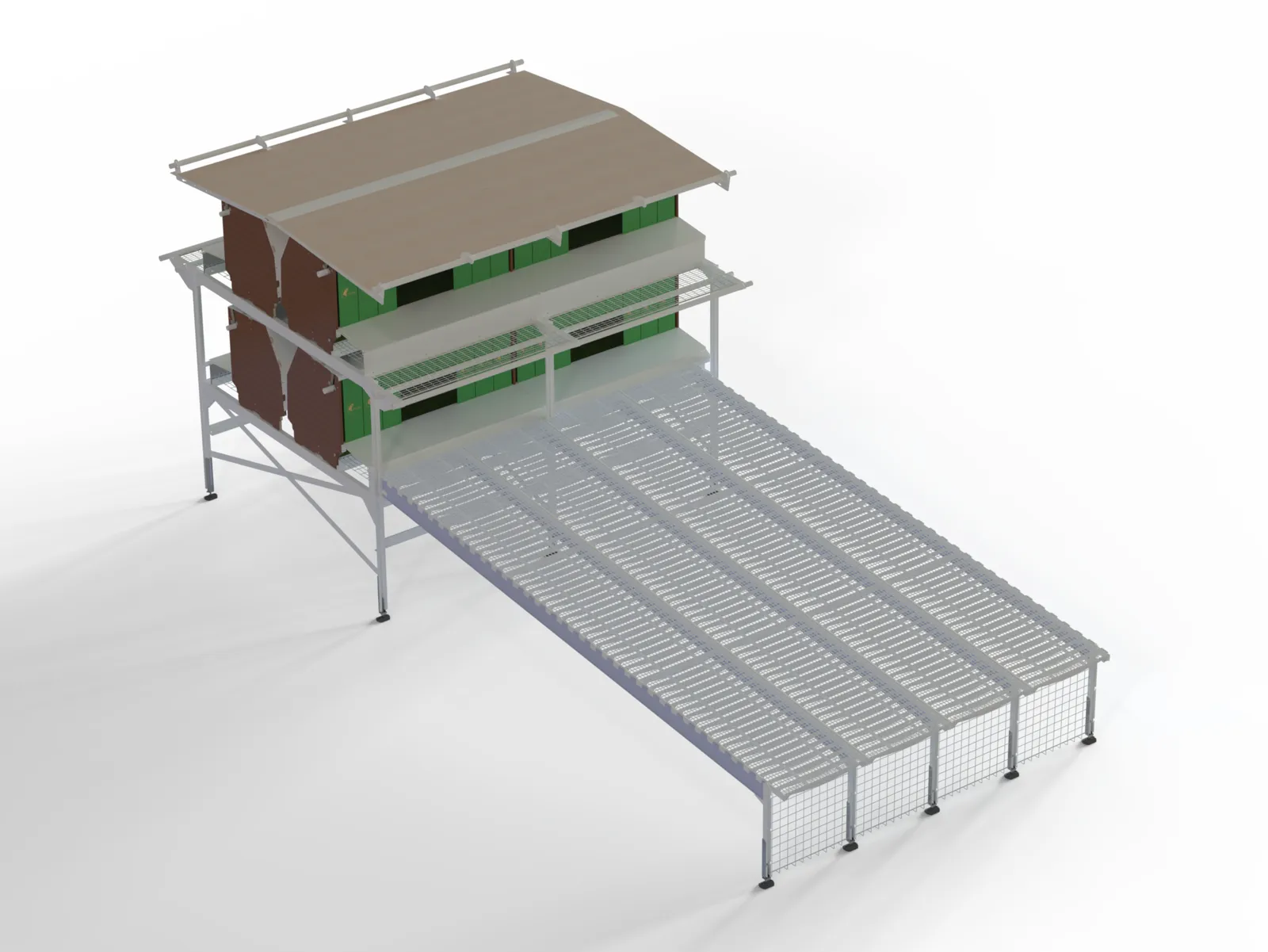

Perchable Roof Space
Single and double tier nests are also available with usable surface roof space fitted with perches.
Single vs. Double Tier
FIT SLATS
High-impact PP plastic slats, built to be durable, comfortable, and very stable.
Rounded, Non-Porous Grids
Safe and steady for younger and older birds, and for the manager walking the slats during inspection.
Firm Support Structure
A firm galvanized steel frame and plastic structure beneath the slats provide support.
Easy Install & Dismantle
The FIT SLAT system is easy to install and dismantle.
Fully Adjustable Legs
Fully adjustable leg supports accommodate variable floor levels.
Easy to Sanitize
Very easy to sanitize at depletion for bio-security purposes.
Ventilated Scratching Area
A vertical mesh grid ventilates the litter, cutting red mite breeding, ammonia odor, and flies.
